Description

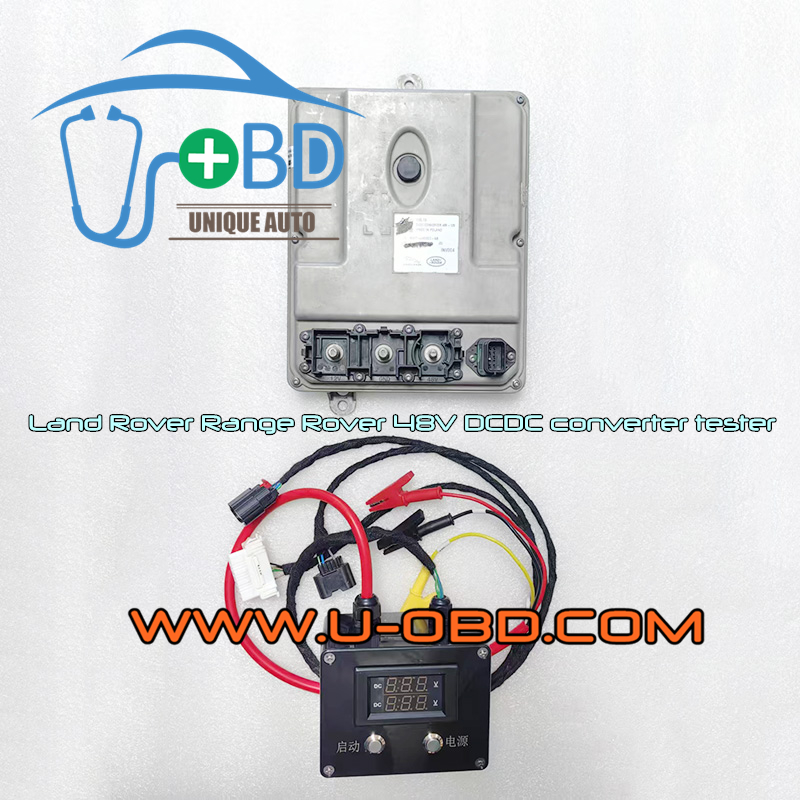

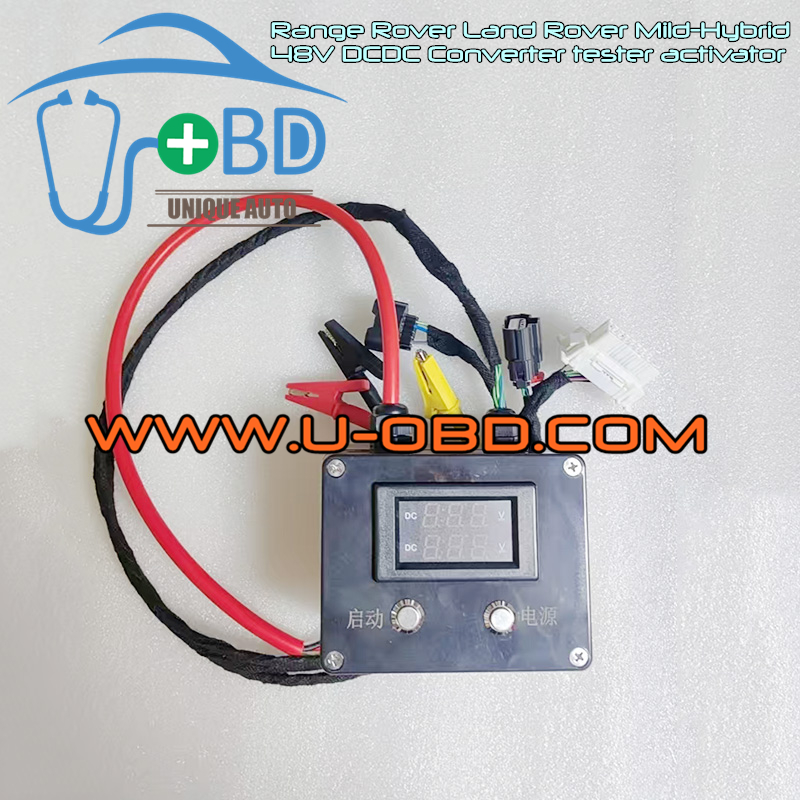

Land Rover Range Rover Mild-Hybrid car 48V DCDC Converter bench tester activator

Applied to test inspect the Land Rover Range Rover Mild-Hybrid car DCDC Converter voltage transformation function(48V system to 12V system) on working desk.  has OBD port able to diagnose the DCDC converter module on bench.

Use a 48V DC Power supply to provide 48V power to the DCDC converter.   If the DCDC converter is in good condition, once press the start button, can see the 48V system charge the 12V system, the voltage number on 12V system voltage meter will raise conspicuously.

To perform the test, besides the DCDC converter module, you need in possession of:

1. A 48V DC Power supply(connect to DCDC Converter).
2. A 12V DC power supply(Connect to tester).

Note:  Product is only the tester.  No car modules or power supply included.
