Autel MaxiSys Mini MS905 Diagnostic Analysis System with 7.9″ Screen LED Touch Display


Autel MaxiSys Mini MS905 Diagnostic Analysis System with 7.9″ Screen LED Touch Display 100% Original

Out of stock

SKU: UAE10064 Category:

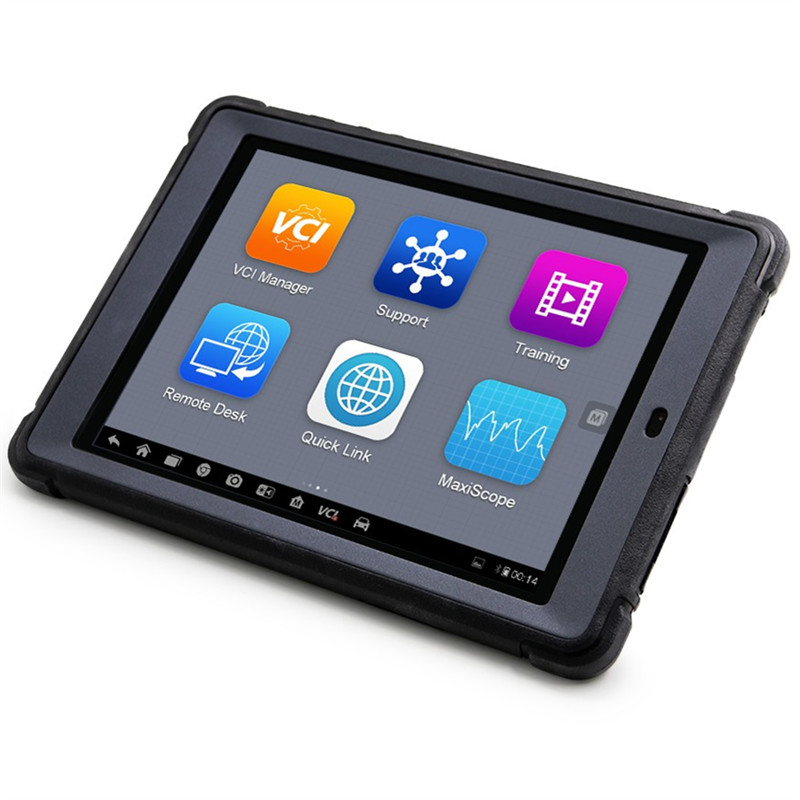

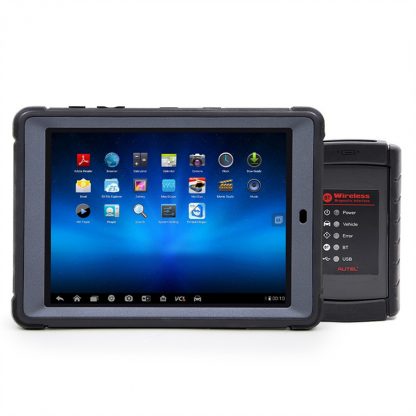

Autel MaxiSys Mini MS905 Automotive Diagnostic and Analysis System
The MaxiSys Mini has been developed for customers looking for a tool with ultra mobility and modern design while still delivering ultimate performance.Featuring a powerful A9 quad-core chip, beautiful 7.9” LED capacitive touch display, ultrafast wireless multitasking mobile operating system, combined with the most extensive coverage of OE-level diagnostics, the MaxiSys Mini is the ideal solution to manage your repair jobs in one mobile and smarter wireless tool.
Why Choose MS905:
1.Language: English,German,French,Spanish,Japanese,Portuguese,Russian,Dutch,Polish,Janpanese,Chinese,Swedishetc.
2. With 7.9″ 1024×768 LED resolution capacitive touch screen
3. With 2GB RAM & 32GB On-board Memory
Item Feature:
1 . 7.9″ 1,024×768 LED-backlit glossy Multi Touch capacitive display with IPS technology
2 . Extraordinarily powerful Cortex-A9 quad-core processor
3 . Internal reliable and fast 32GB Solid State Drive for better performance
4 . Built-in 5-megapixel rear camera with autofocus and flashlight
5 . Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
6 . Unique shop tough ergonomic design features strong rubber protection and housing;
7 . Built-in rechargeable lithium-ion battery for up to 5 hours of continuous operation
8 . USB, audio and auxiliary ports make it easy to connect accessories
9 . The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth
10. Open source Android Operating System for fast boot-up and multitasking
11. Easy and intuitive navigation makes finding what you need simple and fast
12. Extensive vehicle coverage for more than 80 vehicle makes from US, Asian and European
13. Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
14. Displays live data in text, graph, analog and digital gauge for easy data review and analysis
15. Configures display options, sets triggers, records and playbacks results with one touch
16. Records and playbacks live data to pinpoint troubles of sensors and components
17. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
18. Remote technical support for convenient demonstration, training and increased customer satisfaction
19. Prints out recorded data anytime and anywhere with Wi-Fi technology
20. Automatic Wi-Fi updates available in new software releases
Support car list:
 for AUDI, for BENZ, for BMW, for DACIA, for EU FORD, for LANDROVER, for MINI, for OPEL, for PEUGEOT, for RENAULT, for SEAT, for SKODA, for VW, for VOLVO, for SMART, for JAGUAR, for BENZ SPRINTER, for SAAB, for FIAT, for ABARTH, for LACIA, for ALFA ROMEO, for VAUXHALL, for MAYBACH, for BENTLEY, for BUGATTI, for PORSCHE,for GM,for CHRYSLER, for FORD,for SUZUKI, for KIA, for DAWEOO, for ISUZU, for TOYOTA, for SUBARU, for SCION, for NISSAN, for MITSUBISHI, for LEXUS, for INFINITI, for HYUNDAI, for HONDA, for ACCURA, for MAZDA.etc.
 ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins,Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed,Lowspeed and Singlewire CAN, G-M UART, UART Echo Byte Protocol, Ho-nda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708,Fault-Tolerant CAN
Operating System: AndroidTM 4.0, Ice Cream Sandwich
Processor: Samsung Exynos Quad-Core Processor 1.4GHz
Memory: 2GB RAM & 32GB On-board Memory
Display: 7.9″ LED capacitive touch screen with 1024x768P resolution
Connectivity: Ethernet: RJ45 Ethernet Connection Cellular: 3G/4G module: WCDMA
Camera (rear): Rear-facing, 5.0 Mexgapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack
Power and Battery: 5000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power
Power Consumption: 3.9 W
Input Voltage: 12 V (9-24 V)
Operating Temperature: -10 to 55 C (14 to 131 F)
Storage Temperature: -20 to 70 C (-4 to 158 F)
Housing: Strong plastic housing with protective rubber boot
Dimensions (W x H x D): 221 mm (8.7″) x 160 mm (6.3″) x 20 mm (0.78″)
Weight: NW: 0.67 kg (1.48 lb), MaxiSys Mini GW: 8.0 kg (17.6 lb)
Packing list:
1. Main part
MaxiSys Mini Main unit
MaxiSys Mini Case
Quick reference guide
Lighter Fuse
Main cable

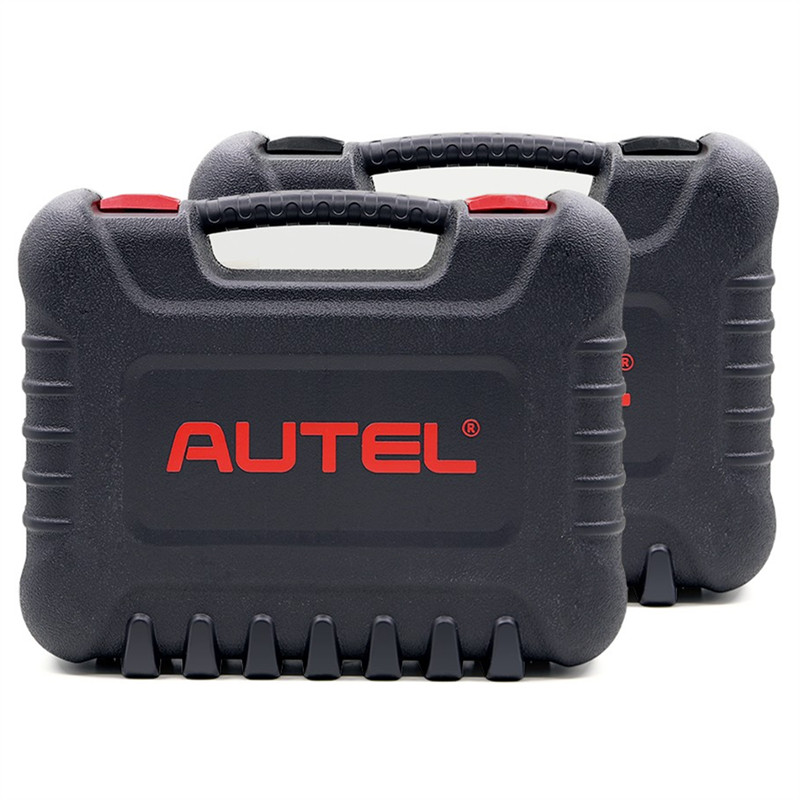

Carry case
USB Cable
User’s Manual
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Wireless Diagnostic Interface
Capacitive Stylus Pen
Soft Cloth
Packing List
Mini USB Cable
2. Adaptor
G-M/Dae-woo-12 adaptor
Au-di-2+2 adaptor
BM-W-20 adaptor
Be-nz-38 adaptor
Kia-20 adaptor
Mitsu-bishi/Hyu-ndai-12+16 adaptor
Niss-an-14 adaptor
H-onda-3 adaptor
Chrysler-16 adaptor

Additional information

Weight 11 kg
Dimensions 35 × 30 × 25 cm
