T300 Auto Key Programmer T Code Programmer Tools with English /Spanish

$ 146.60

T300 Car Key Maker Optional T Code Programmer Tools with English /Spanish

SKU: UAE100142 Categories: , Tag:

Description

T300 Auto Key Programmer T Code Programmer Tools with English /Spanish

Models coverage:

For Acura, for Audi, Alfa, for Chevrolet, for Citroen, Daewoo,Fiat, GM, Honda, Hyundai, Isuzu, Infiniti, Jaguar, Kia, Land Rover, Lancia, Lexus, Lincoln, Mazda Japan, Mazda USA, Mercury, Mitsubishi, Nissan, Peugeot, Renault, Rover, Seat, Skoda, Suzuki, Toyota Japan, Toyota USA ,Volkswagen and VW/Audi (Pin code reading) .

This product can not do FORD and GM Holden. please pay attention.

 Functions:

1. Read the vehicle malfunction code

2. Clear the vehicle malfunction code

3. Read IMM0/ECU ID

4. Reads the machinery key code

5. Clear vehicle key memory

6. Program new key

7. Read EKA password

8. Programme new EKA password

Packing list:

1. VAG 2×2 ADC-112,

2. Nissan ADC -135[16 pin adpater],

3. Nissan ADC-136[14 pin adpater],

4. cigarette lighter cable,

5. OBD2 ADC-110,

6. Honda ADC-141,

7. Daewoo ADC-131

8. Peugeot ADC-148 can,

9. Suzuki Adopter ADC-128,

10. Mitsubishi Adaptor ADC-129,

11. Honda Adaptor ADC-134,

12. Honda 3pin ADC-134,

13. Chrysler Adaptor 1 ADC-138,

14. Chrysler Adaptor 2 ADC-139,

15. Nissan Adaptor ADC-133,

16. Test Self ADC-145,

17. T300 Main Unit

Languages:

English and Spanish



VW Transponder key matching with 5 digits Login Code

Procedure for adding transponder keys to vehicles with separate Immobilizer box:

Switch ignition ON with new key. Select: Immobilizer -> Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example, if your Login is 1234, enter 1234.
Save
Go to Adaptation
Enter 01 in “Channel Number”
Enter
The “Stored Value” is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched, – for ex 2 ;
Enter -> Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation
Enter 00 in “Channel Number”
Enter 0 and Save. This will learn ECU with Immobiliser.

Procedure for adding transponder keys to vehicles with Immobilizer in the instrument cluster:

Switch ignition ON with new key. Select: Instrument -> Login
Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).
For example, if your Login is 1234, enter 01234.
Save
Go to Adaptation
Enter 21 in “Channel Number”
Enter
The “Stored Value” is the number of keys currently matched.
Enter number corresponding to the total number of keys to be matched, – for ex 2 ;
Enter -> Save
Switch ignition off and remove key
Insert next key to ignition and switch ignition on again
Wait 15 sec. Repeat this step with each key until all keys have been matched.
Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation
Enter 00 in “Channel Number”
Enter 0 and Save. This will learn ECU with Immobiliser.

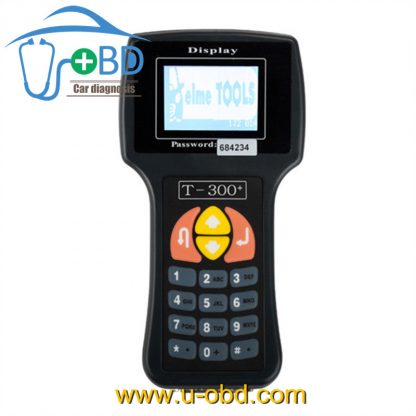

T300 Key programmer

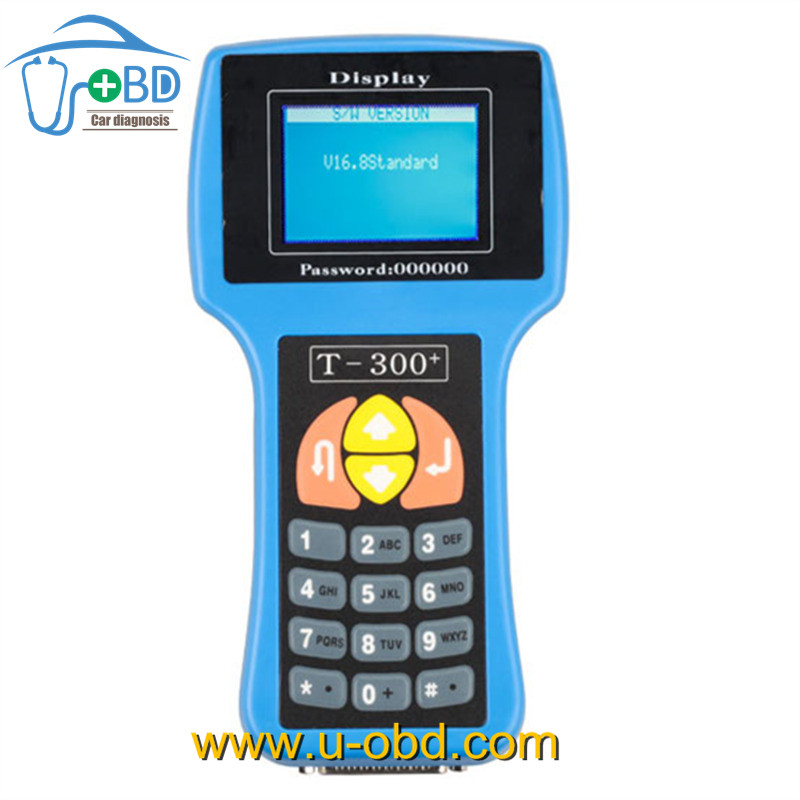

T300 Key programmer

Additional information

Weight 0.8 kg
Dimensions 20 × 25 × 20 cm
